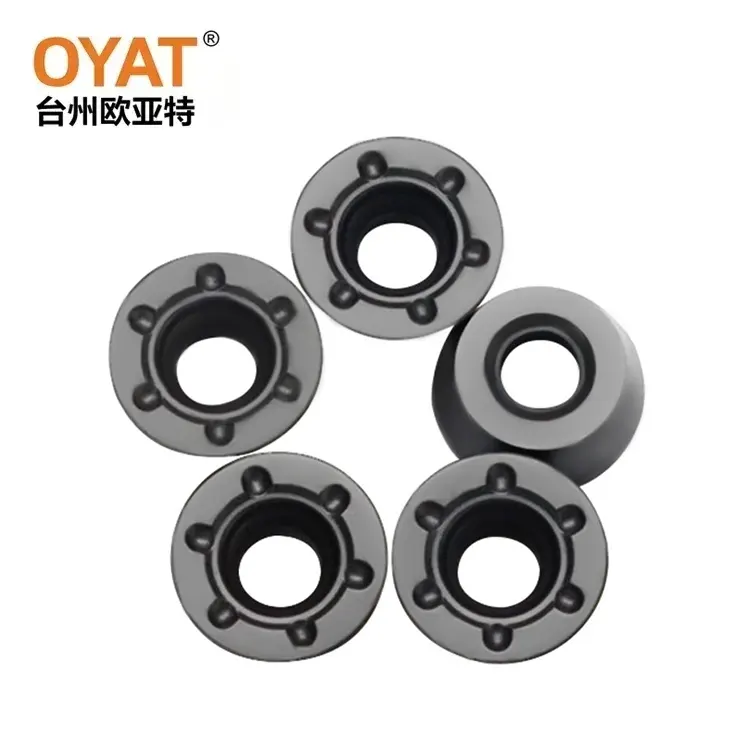

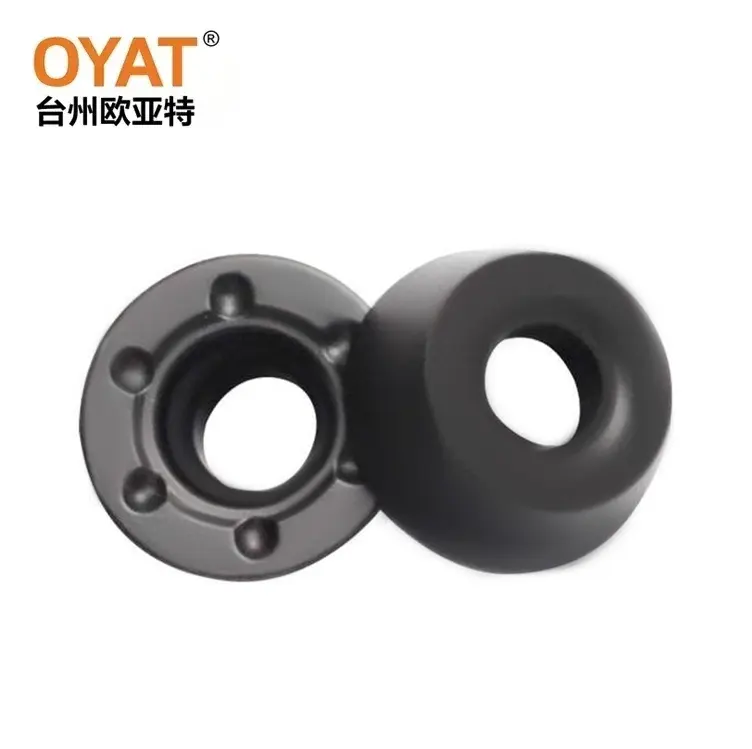

OYT Technology Company has a comprehensive R&D and manufacturing system, capable of independently controlling the entire process from raw material powder preparation to coating treatment. The RDKT1204MO Milling Inserts, through optimized groove design and edge treatment, effectively addresses issues such as knife sticking and edge chipping in stainless steel processing. The company's stringent quality control ensures the dimensional accuracy and performance consistency of each blade, which is now widely used in aerospace, automotive manufacturing, and other fields.
The RDKT1204MO milling insert is a high - performance tool designed for machining stainless steels, alloy steels, and hardened materials up to HRC45 and above. Its optimized hard alloy substrate cleverly balances toughness to resist impact during cutting with the hardness needed for wear - resistance. This makes it highly effective across a wide range of materials, including carbon steels, stainless steels, and certain non - ferrous metals.
For 304 and 316L austenitic stainless steels,OYT RDKT1204MO milling insert is unique design elements, such as the - 5°rake angle and 3°edge inclination, work in tandem with PVD coating technology. This combination effectively prevents the formation of built - up edges, which are common in stainless steel machining. The recommended cutting parameters (120 - 180m/min cutting speed, 0.15 - 0.25mm/z feed, 0.7 - 1.5mm depth of cut) allow it to achieve a surface finish of Ra0.8 - 1.6μm, making it an ideal choice for manufacturing aerospace thin - wall components and medical devices that require high precision and smooth surfaces.
For hardened materials with a hardness of HRC58 or higher, the multi - layer gradient coating on the RDKT1204MO milling insert provides excellent thermal stability and oxidation resistance. This allows for stable low - speed machining (20 - 50m/min), which is essential for processing challenging features like deep cavities and narrow slots. These capabilities make RDKT1204MO milling insert a valuable tool in the manufacturing of aerospace inserts and precision instruments.
Taizhou OYT's RPMW1204MO insert incorporates the RDKT1204MO insert technology. This combination offers a cost - effective solution, making it a preferred choice for machining stainless steel, alloy steel, and hardened materials. It successfully bridges the gap between high - performance machining and economic viability, meeting the demands of various industries.
